Clear Terminal Log

Over a period of time, when data accumulates on the terminal, it takes longer for transaction downloads to complete.  It is recommended that terminal data be deleted regularly.  This may be each period or when there is a significant buildup of transactions on the terminal.



Save, or download, the terminal transactions/ clockings onto a flash drive or backup through the network.



There are two ways to clear data on the terminal:



Method 1 : Through the network



To do this:

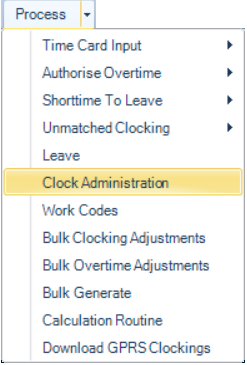

Go to the 'Process', 'Clock Administration' menu options

ProcessClockAdministration

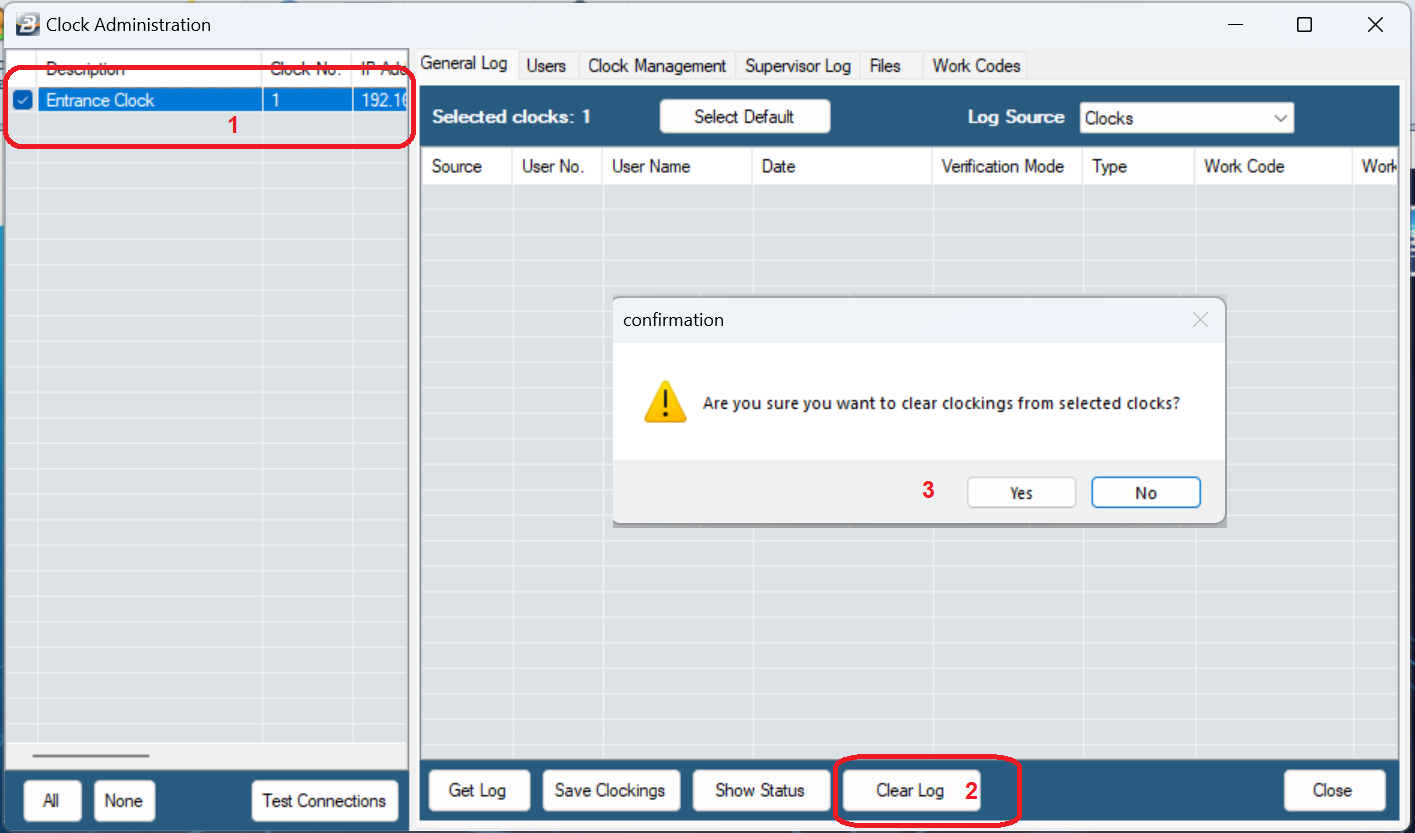

In the left hand section of the screen select the terminal/ clock being cleared, then

Click the 'Clear Log' button



ClearTerminalLog

Click 'Yes' when prompted to continue

The log on the selected terminal will be cleared



Method 2 : on the terminal/ clock

Physically go to the terminal whose data is being cleared. Then:

Insert the flash drive into the USB port of the terminal to save the data that is on the terminal onto the flash drive

 For TFT500/ TFT600 Mk1

 For TFT600 Mk2

 For FA5

 For FA1

Then delete the data from the terminal/ clock, to do this:
