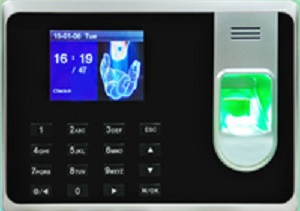

The TFT 400 Terminal is an entry-level terminal that does not have function keys. It is suitable for organizations that have simple clocking procedures. It is a robust and reliable time recording terminal with fingerprint recognition, Proximity or Keypad entry. It supports job costing (Work Codes). It does not have access control functionality.
♦ Color TFT screen with GUI Interface for ease of use
♦ Built-in latest fingerprint algorithm V10.0
♦ Built-in SSR attendance recorder
♦ Support office excel software, openoffice.org
♦ Built-in USB port allow manual SSR recorder transfer
♦ Functions keys to select the IN or OUT status of the punches
LCD Display |
Language |
2.8 inches TFT Screen |
English(other language can be customized) |
Speaker: Voice prompt(language can be selected) |
|
Capacity |
Environment |
Fingerprint:1000 |
Operation temperature:0℃~45℃ |
card:500 Transaction:50,000 |
Operation humidfity:20%~80% |
Verification |
Identification |
Verification speed(1:1) ≤0.5s |
FRR≤0.01% |
Identification speed(1:1)≤1s |
FAR≤0.0001% |
Communication |
Power Supply |

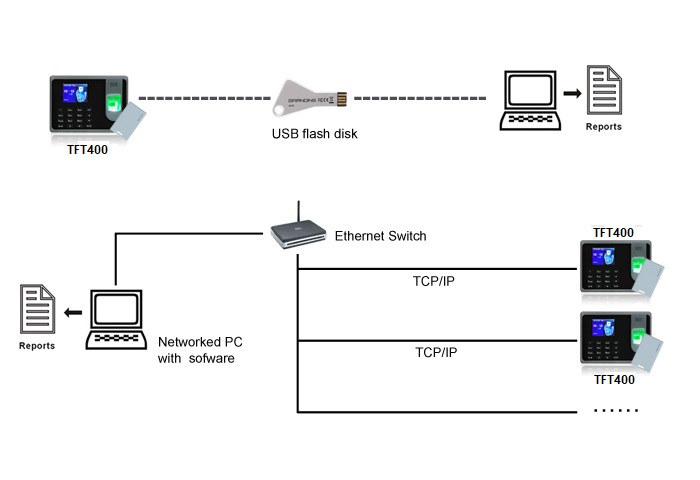

TCP/IP, USB Host |
110/220VAC-5VDC/0.8A |
Standard Functions |
Package info. |
ID card reader, Query, Automatic Status Switch, 9 Dight User ID, T9 Input, Self-service query |
185(L)*140(W)*30(H)mm Unit packing:300*210*75mm Real weight:0.75kg Volume weight:1kg |
