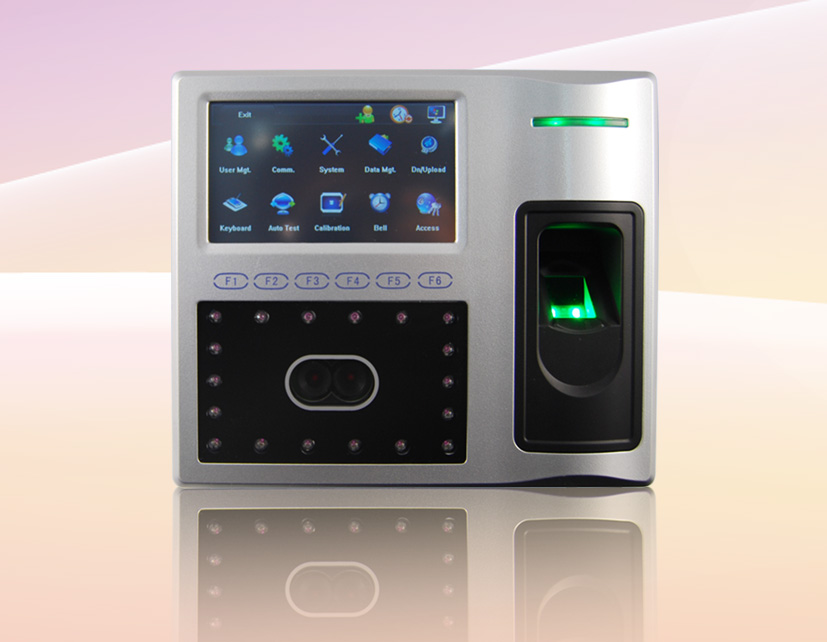

Fingerprint, Facial, Proximity or Keypad entry.
Has all the functionality of the U SCAN 2, including job costing and access control. The facial recognition facility uses the skeletal structure of a human face to clock in and out. It also has a touch pad and inbuilt backup battery that not only retains data during a power failure but allows continued clocking.
Belina stock the full range of spares and accessories for the terminals. Should the terminal malfunction the terminal can be repaired and returned, but should there be an inordinate delay the terminal can be swopped-out and data uploaded from the Belina Time Control Module. All the functionality of the previous terminal is restored, including staff fingerprints.
Composite algorithm system with high speed operating
v Embedded LINUX system, easy to integrate into various systems

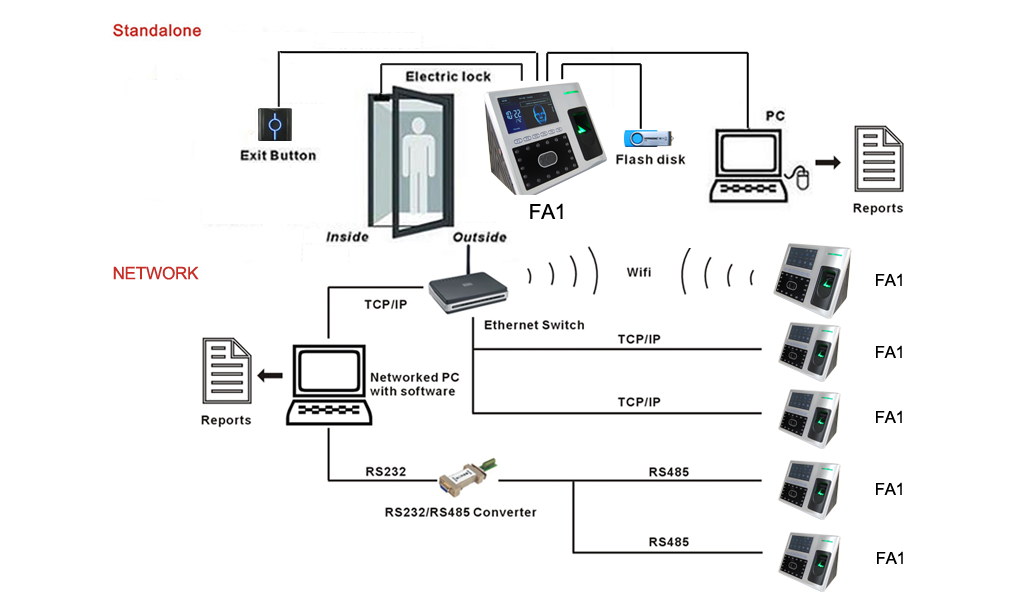

v Standalone or network environment
v Infrared optical system enables user identification in dark environment
v Simple access control system support real-time entrance logs transferring
v 4.3” TFT touch screen, elegant design, fashionable and simple interface
v 6 user-defined function keys, easy operation
v Saves data during power outage
Display/Speaker |
Language |
LCD Display: 4.3" TFT Touch screen |
Multi Language, English, French, Spanish, Arabic, |
Speaker: Voice Prompt (language can be selected) |
etc., for more than 40 languages can be selected |
Technical Specifications Capacity |
Environment |
Face capacity: 700; Fingerprint capacity: 3,000 |
Operation temperature: 0℃ ~ 45℃ |
Log capacity: 100,000 |
Operation humidity: 20% ~ 80% |
Verification/Identification |
Verification/Identification |
Verification speed(1:1): ≤1s |
FRR: ≤0.01% |
Identification speed(1:N): ≤1s |
FAR: ≤0.0001% |
Power Supply |
Machine Size |
Power: 110/220VAC ~ 12VDC |
194(L)*165(W)*86(H)mm |
Communication |
Attendance status |
TCP/IP, RS232/485, USB Host*2, Wiegand out |
Check in, Check out, Break in, Break out, OT in, OT out |
Standand Function |
Customize Function |
High definition infrared camera; 6 user-defines function keys; Built-in relay, simple asccess control, door sensor; Dismantlement alarm, break-in alarm, duress alarm; Scheduled bell, Workcode, SMS, T9 input, DST, Self inquiry, Photo-ID, Extendable scheduled bell. |
Webserver, Li-battery, 14-pin code, Printer output; ID reader, Mifare reader, Wifi, GPRS |
